We are writing this post to clear some common ASTM E74 misconceptions.   We have written two early blogs on the ASTM E74 standard ASTM E74 Simplified, Calculating CMC using ASTM E74 standard and have a slide share presentation detailing the ASTM E74 standard.

This blog post is to help clear the three top misconceptions commonly observed in industry.


Misconception #1: Zero can be used as the first calibrated test point.

This is not true in anyway possible.    In the ASTM E74-13a standard the following sections point to this not being allowed.


Per Section 8.6 of ASTM E74-13a  “The loading range shall not include forces outside the range of forces applied during the calibration”
Per Section 7.2.1 of ASTM E74-13a states  “In no case should the smallest force applied be below the lower limit of the instrument as defined by the values: 400 x resolution for Class A loading range & 2000 x resolution for Class AA loading range”

Do Not assign a Class A or Class AA range below the first non-zero force point.   Note:  We have observed numerous labs violating this rule!  If your verified range of forces is less than the first non zero test point, your calibration provider is not following ASTM E74.

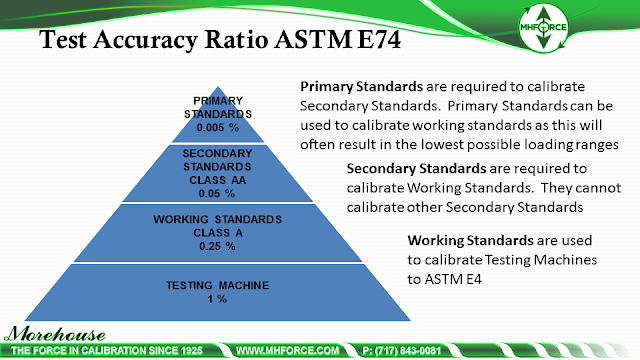

Misconception #2: Designation of loading ranges.

Some labs think a Class AA verified range of forces can be used to assign a Class AA range.  This is not true.

A force measuring device with a Class AA range cannot assign another Class AA range; A force measuring device with a Class A  range cannot assign another Class A range.

Do Not Assign a Class AA verified range of forces, unless you are calibrating with primary standards accurate to better than 0.005 %


Do Not Assign a Class verified range of forces, unless you are calibrating the device using a secondary standard that was calibrated directly by primary standards.




Misconception #3:  A Calibration interval of one year is required for all force measuring devices not meeting the stability criteria set forth in ASTM E74.

(Note:  The maximum calibration interval is two years and this includes any force device)

Calibration Intervals Per ASTM E74-13a:

New Devices are calibrated at a one year interval per Section 11.2.1  "New devices shall be calibrated at an interval not exceeding 1 year to determine stability"

"The calibration intervals for force-measuring instruments and systems used as secondary force standards or for the veri?cation of force indication of testing machines shall be calibrated at intervals not exceeding two years after demonstration of stability supporting the adopted recalibration interval"

If the force measuring instrument does not demonstrate changes in the calibration values over the range used during the calibration of more 0.032 % of reading for Class AA verified range of forces or 0.16 % of reading for a Class A range, A two year calibration interval can be assigned.


Per Sections 11.2.2 Devices not meeting the stability criteria of 11.2.1 shall be recalibrated at intervals that shall ensure the stability criteria are not exceeded during the recalibration interval.   This means the user needs to shorten the calibration interval to ensure the device will meet the stability.   This could mean 16 months or it could mean 10 days.  It all depends on the quality of the instrument.

For Class AA force measuring devices ASTM recommends in note 16 - " For secondary force standards, it is recommended that cross-checking be performed at periodic intervals using other standards to help ensure that standards are performing as expected."   If you cannot cross check your instrumentation, it may be best practice to have the force measuring instrument calibrated on a periodic basis.

This  post covers the basics.  Anyone calibrating in accordance with the ASTM E74 standard should  purchase a full copy of the standard here http://www.astm.org/Standards/E74.htm
Morehouse Developed a Calibration and Measurement Capability worksheet for instruments calibrated in accordance with the ASTM E74 standard.   This sheet can be downloaded at http://www.mhforce.com/Files/Support/225/CMC-CALCULATIONS-FOR-FORCE-MEASUREMENTS.xlsx


Morehouse offers a force calibration workshop designed to make the participant a better calibration technician by providing the knowledge to obtain more accurate force measurements, along with tools to create a full measurement uncertainty budget as required by ISO/IEC 17025 and ANSI Z540.3.   To become or have someone become a better calibration technician, click here.
